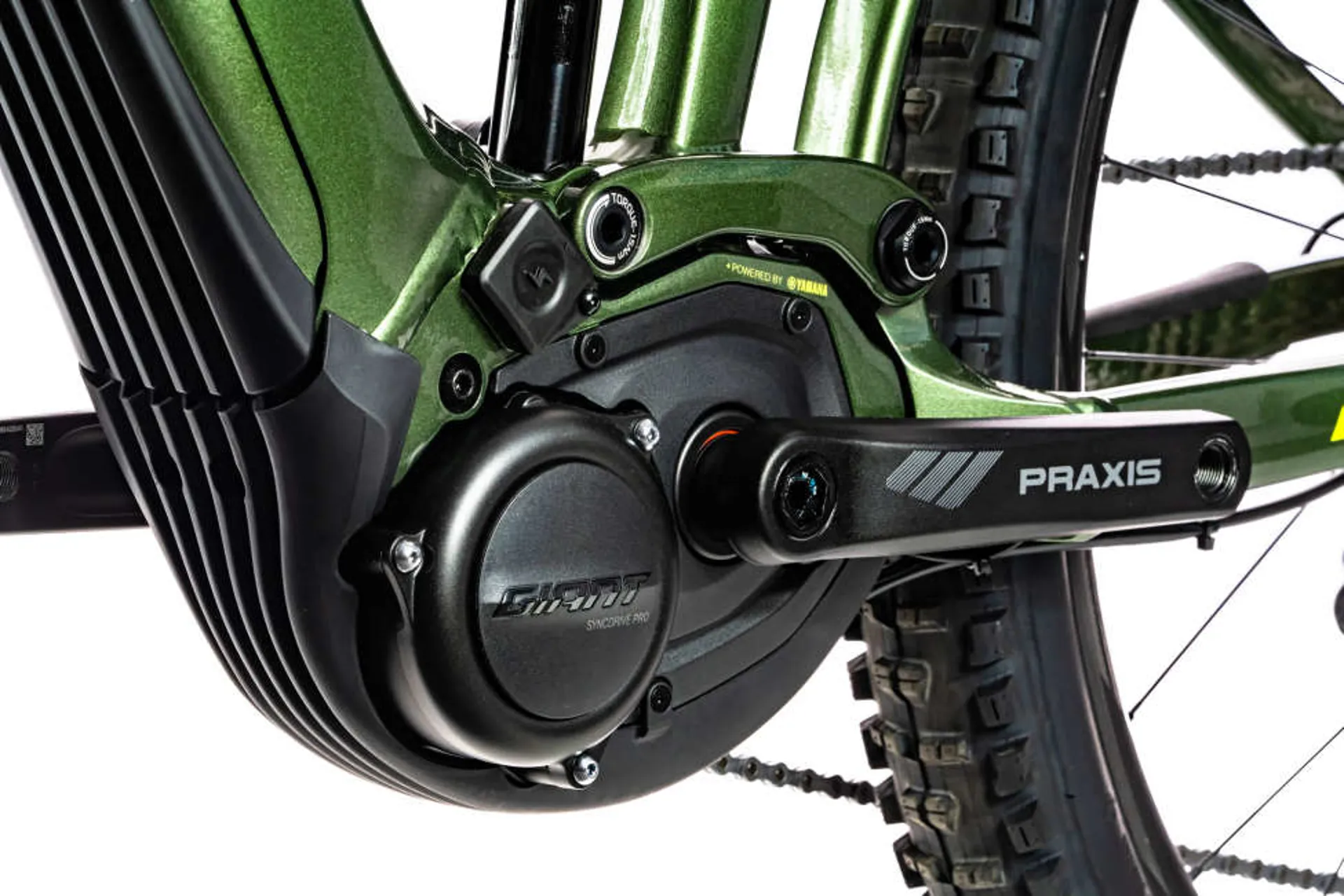

Motor | Giant SyncDrive Pro, automatic support, 5-mode, 50-360% tunable support, 80Nm, powered by YAMAHA |
---|
Sensors | Giant PedalPlus 6-sensor technology |
---|
Display | Giant RideControl ONE, remote button |
---|
Battery | Giant EnergyPak Smart 625wh, 36V 13.8Ah integrated Lithium-Ion |
---|
Sizes | S, M, L, XL |
---|
Colours | Acid Yellow / Army Metallic |
---|
Frame | ALUXX SL-grade aluminum, Advanced forged composite upper rocker, 140mm Maestro suspension system |
---|

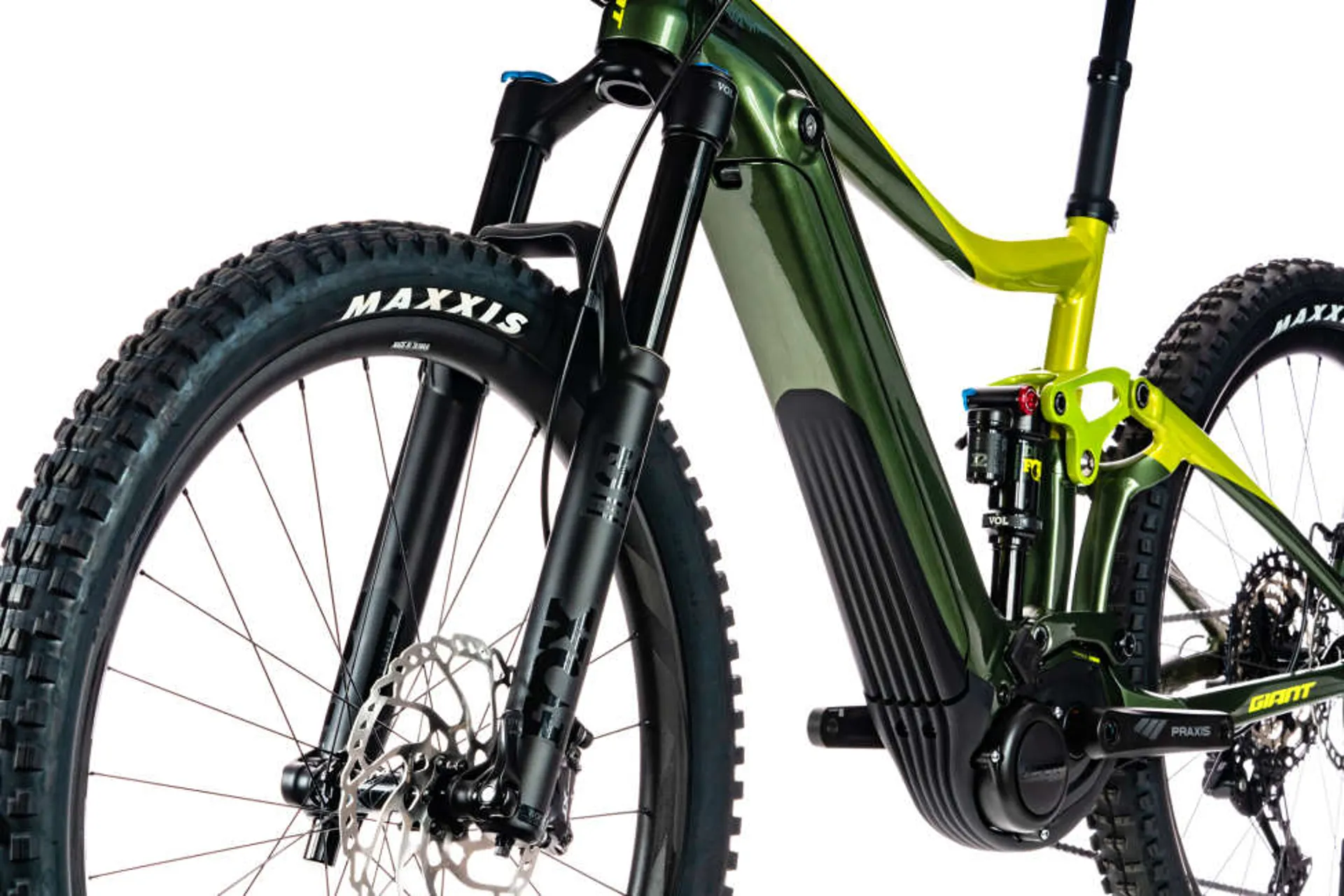

Fork | Fox 36 Float Performance 27.5+ 150mm, 44mm offset, EVOL, 3-position Micro Adjust Grip Damper, Boost 110x15QR, e-Bike optimized |
---|

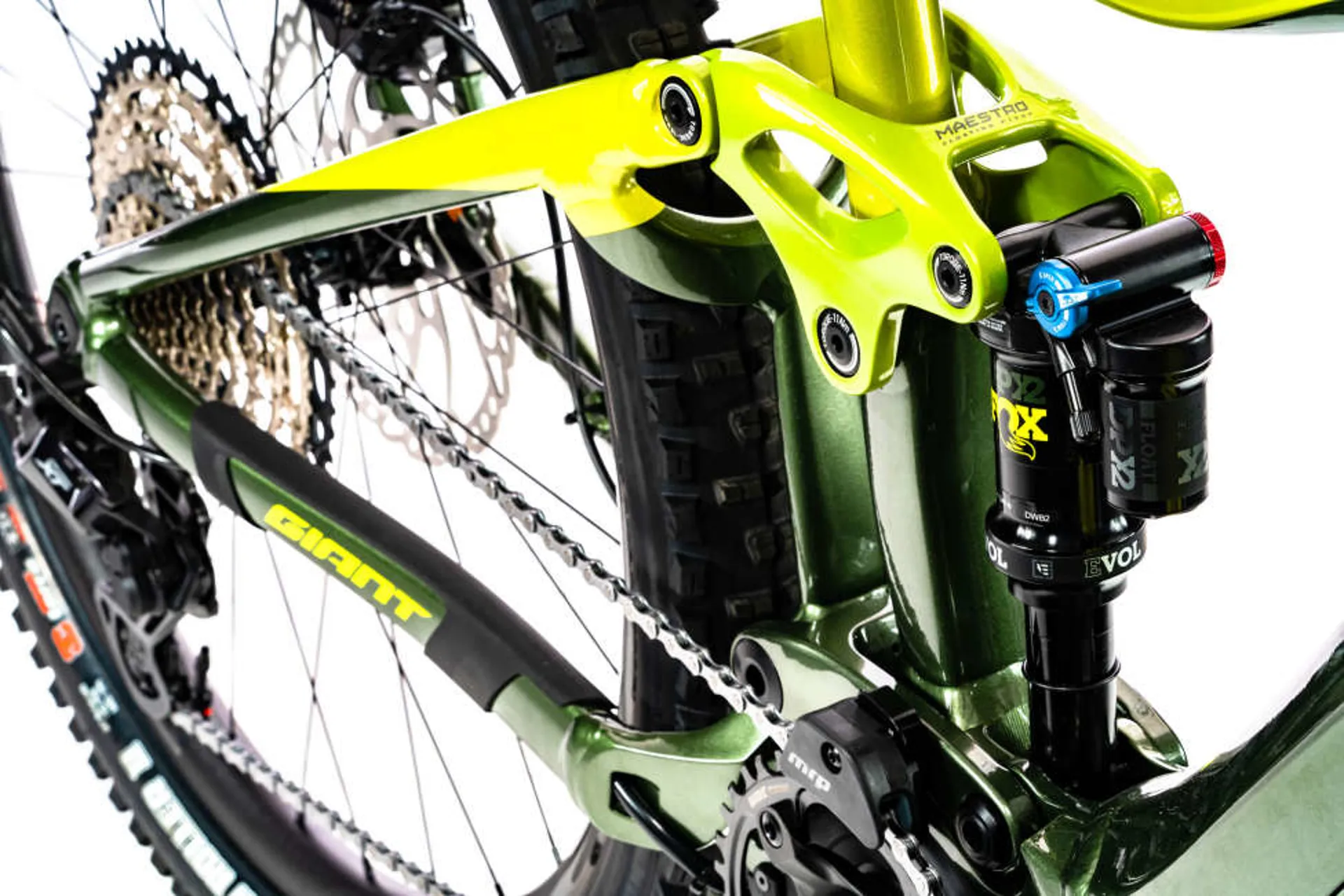

Shock | Fox Float DPX2 Performance,EVOL Large Volume sleeve, 3-Pos Lever, 185x52.5mm Trunnion mount |
---|
Handlebar | Giant Contact 35 Trail, 35x780mm |
---|
Stem | Giant Contact SL 35 |
---|
Seatpost | Giant Contact Switch, dropper, 30,9mm (S:100/M:125/L:150/XL:170) |
---|
Saddle | Giant Contact, Neutral |
---|
Pedals | - |
---|
Shifters | Shimano Deore XT, 12-speed |
---|
Front Derailleur | MRP 1X custom "V3" co-moulded TR chain guide |
---|

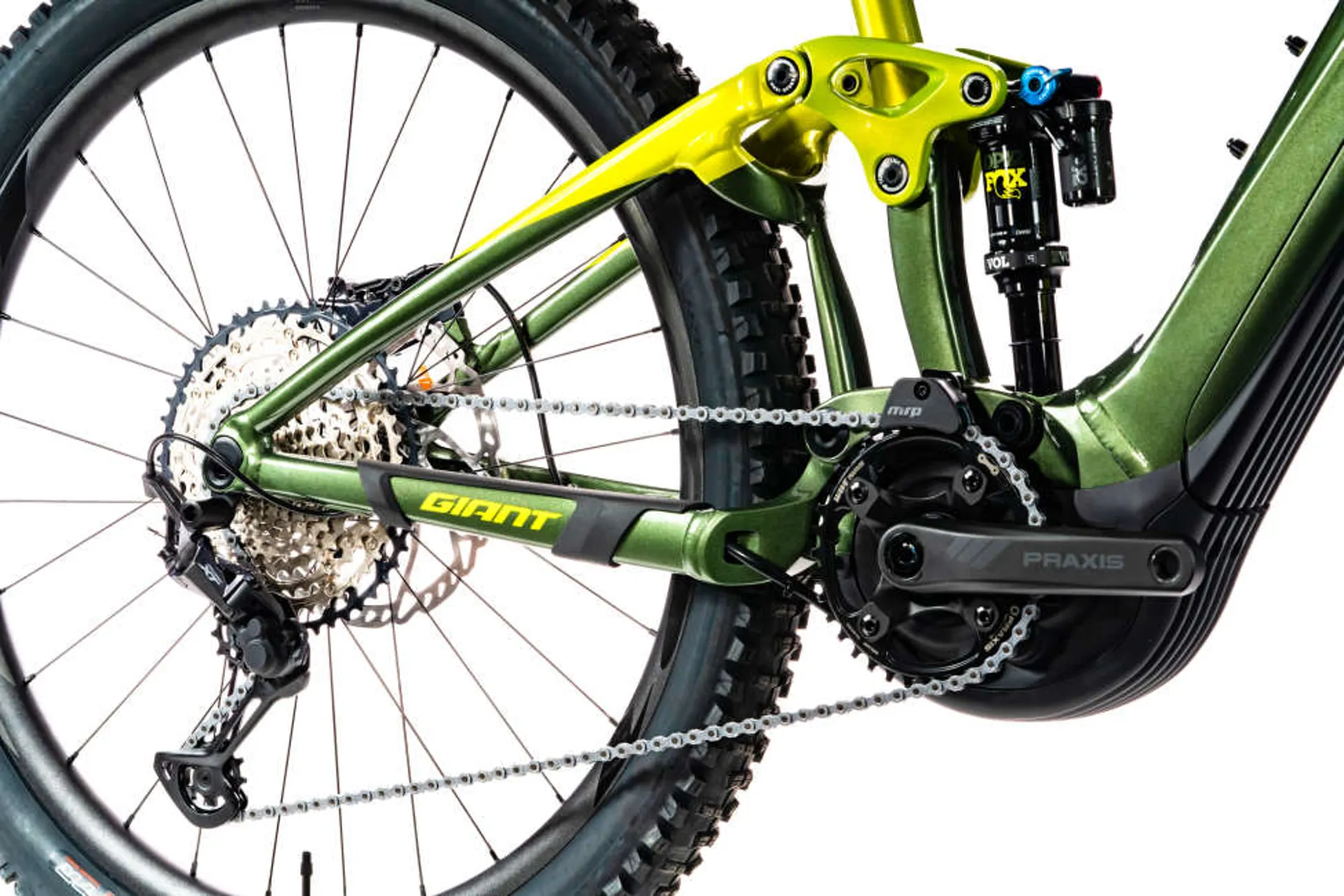

Rear Derailleur | Shimano Deore XT, 12-Speed, Shadow+ |
---|
Brakes | Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 203mm |
---|
Brake Levers | Shimano Deore XT, BL-M8120 |
---|
Cassette | Shimano HG-M7100, 10-51T, 12-Speed |
---|
Chain | KMC e.12 Turbo, EcoProteq, e-bike optimized |
---|
Crankset | Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, XS/S:160, M/L:165, XL:170) |
---|
Bottom Bracket | N/A |
---|
Rims | Giant e-TR1 27.5, Tubeless ready, 30mm inner width |
---|
Hubs | Giant e-TR1 [F] 110x15 [R] 148x12mm Thru-axle |
---|
Spokes | Giant e-TR1 |
---|
Tyres | Maxxis Minion DHF 27.5x2.6" foldable, Tubeless, EXO, 3c MaxxTerra[F]Maxxis HighRollerII 27.5x2.6" Foldable, Tubeless, EXO, 120tpi 3C Compound [R] |
---|
Extras | Giant EnergyPak 6A Smart charger Tubeless kit (liquid, valves, levelrs, manual, tool) |
---|
Weight | 24.9kg (size M) |
---|
