The patrol carbon GX sits right in the middle of the product line as a workhorse spec that gives you all the important parts you need on a carbon frameset at a great price.
The patrol carbon GX sits right in the middle of the product line as a workhorse spec that gives you all the important parts you need on a carbon frameset at a great price.
Transition

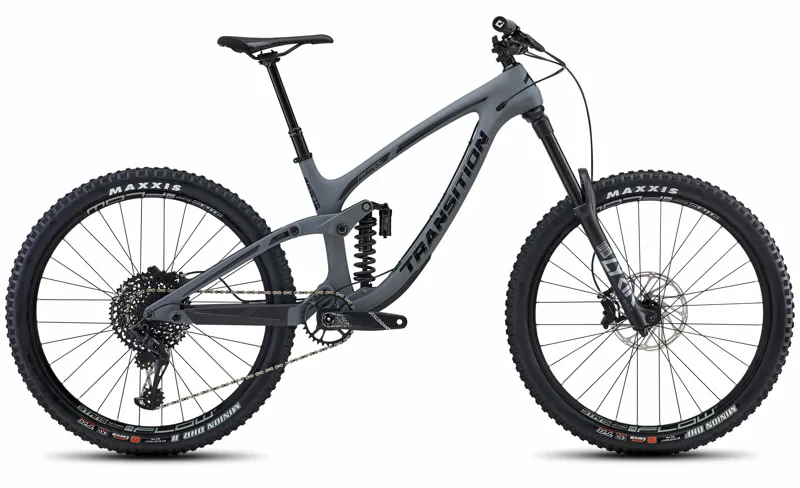

Transition Patrol Carbon Complete Bike GX TR Grey

£4,799.95
Click & Collect for Free
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on the Undetermined

Transition Patrol Carbon Complete Bike GX TR Grey Information

Season : 2020

Brand : Transition

Code : YRGRTYRG.XG.BRAC.TAP.02.B

For suspension, you get a similar Fox dpx2 performance rear shock found on the xo1 build kit as well as the always impressive Fox 36 with the new grip damper. For the drivetrain, 12spd GX eagle has a massive range (50-10 tooth) for getting you up super steep climbs. The build continues to punch above its weight class by offering 4 piston code r brakes for superior stopping power and fade resistance, stans flow s1 comp complete wheelset and our favorite 3c maxxis minion tires with a 2.5" front and 2.4" rear for added grip. Transition purposely built this spec so you didn't need to upgrade a single part on this bike, just set and forget.

Available colours: coral blue, tr grey

speed balanced geometry

sbg ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With sbg, a slacker head tube angle is combined with a all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of sbg's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.

giddyup 2.0hh suspension*measured in parsecs

**size 9 foot (measured in flip-flops)

take the successful giddyup suspension system, add one part increased pedaling efficiency, two parts wider sag range, and three parts increased small bump sensitivity, and you get giddyup 2.0hh. Incredible pedaling performance balanced with a superb neutral, comfortable and fun feel that we're known for.

We specifically tuned the suspension with a moderate amount of chain growth which is highest at the sag point and decreasing deeper into the travel. Because of this finely tuned wheel path, there is a notable increase in traction when climbing, without the rider noticing the chain growth fighting the suspension movement.

Giddyup 2.0hh is extremely easy to setup and it provides excellent support throughout the entire stroke of the shock so you can use all your travel without worrying about bottom out. Designed to be active while climbing, rear shock climbing platforms are not necessary. The suspension remains free to smooth out the trail, improve traction and control without sacrificing efficiency. With giddyup 2.0hh you can focus on the trail, no remotes, levers or knobs. Just grab your bike and giddyup.

Frame features
fork axle to crown 562mm
fork offset 37mm
rear shock size 205mm x 65mm
rear shock hardware trunion mount top / 25mm x 8mm bottom
headset 44mm zero stack (top) / 56mm zero stack (bottom)
bottom bracket 73mm bsa threaded
rear brake 180mm post mount
rear axle syntace x12 148
front derailleur no support
iscg tabs iscg05
seatpost diameter 31.6mm
max seatpost insertion alloy xs 140mm, small 140mm, medium 185mm, large 225mm, xl 270mm
max seatpost insertion carbon small 190mm, medium 225mm, large 245mm, xl 245mm
seat clamp alloy 34.9mm/carbon 37mm
maximum chainring 34t
maximum tyre 27.5 x 2.8
sag setup 20-23mm (32-35%)
frame weight
(medium with shock)
carbon 7.47 lbs. - 3.39 kg / alloy 9.48 lbs. - 4.3 kg
warranty 3 year
