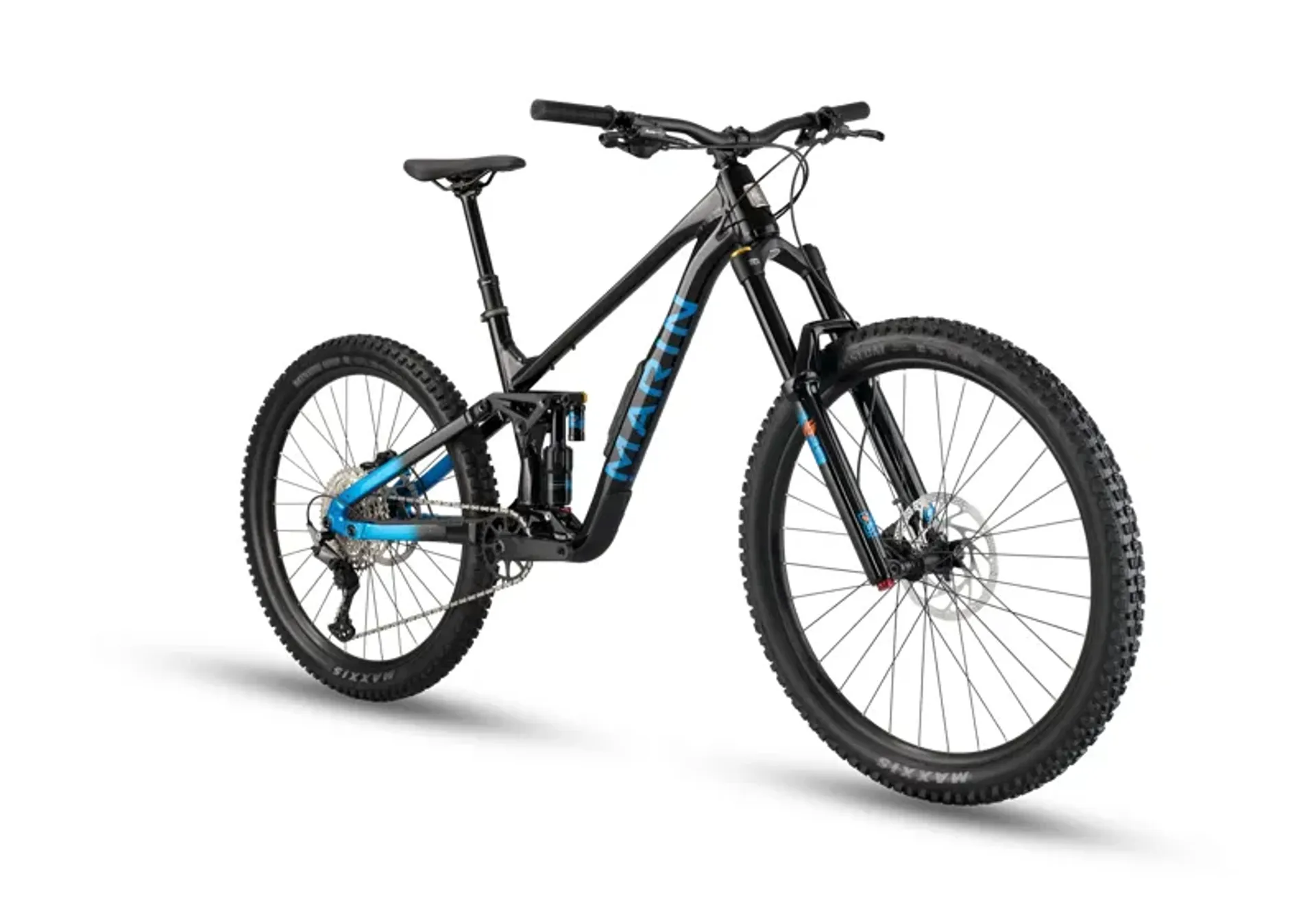

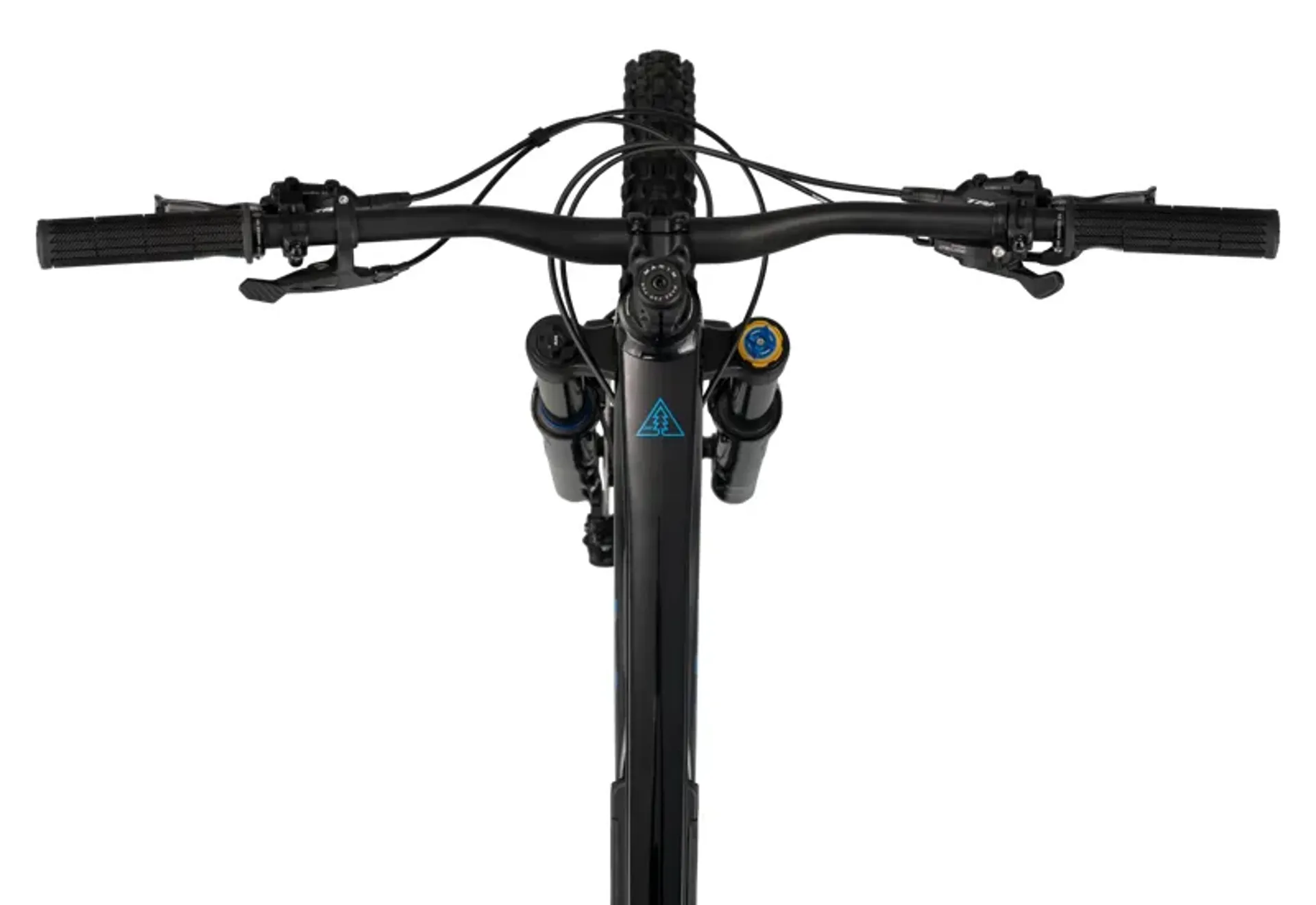

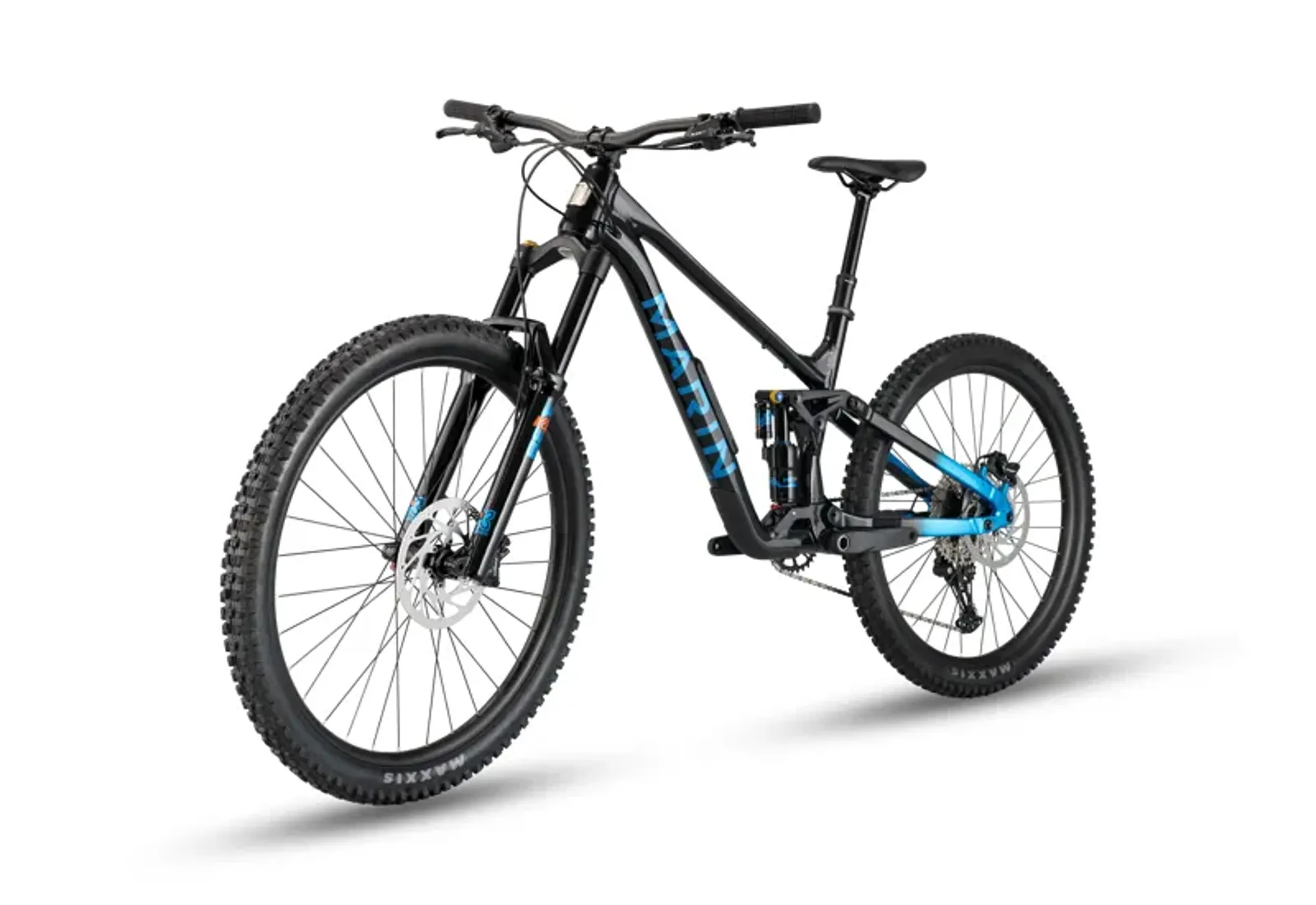

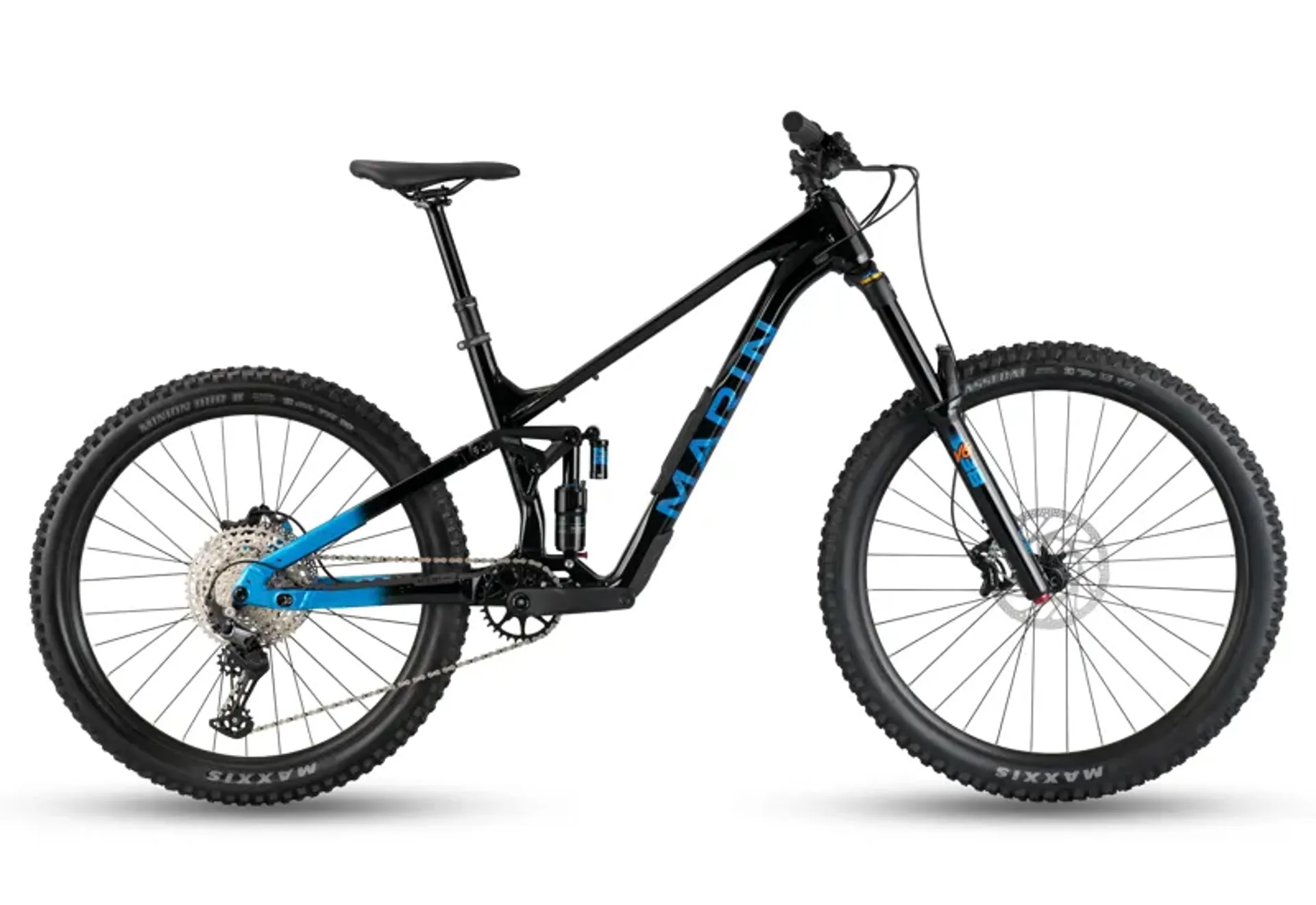

Marin Alpine Trail 1 Full Suspension Mountain Bike in Black/Blue

Season:2026

Brand:Marin

Code:7415210BLK

Maximum enduro, zero compromises. The Alpine Trail 1 is ready for it – slap turns, eat bumps and smash the rough.

The Series 4 Aluminum frame features geometry adjustment, a 160mm MultiTrac LT suspension platform, and integrated downtube storage. It is mixed wheel or full 29in compatible, includes a UDH, and features ride-hushing chain slap protection.

The X-Fusion Vengeance fork provides 170mm of travel, matched to the H3A rear shock. The Horst-link design balances progression, support, and suppleness. Shimano's Deore 12-speed drivetrain shifts cleanly under pressure, while TRP's Slate Evo 4-piston brakes with 203mm rotors provide power and modulation.

Riders can lock in a personal set-up with tunable geometry. The upper headset cup allows for ±0.75 degrees of adjustment, and chainstay flip chips adjust bottom bracket height and chainstay length. The TranzX adjustable travel dropper allows for a precise fit.

Features:

  • Series 4 Aluminum frame with integrated Bear Box downtube storage
  • 160mm MultiTrac LT suspension platform
  • X-Fusion Vengeance 170mm fork and H3A rear shock
  • Shimano Deore 12-speed drivetrain
  • TRP Slate Evo 4-piston brakes with 203mm rotors
  • Adjustable geometry via headset cups and flip chips
  • Mixed wheel (29in front/27.5in rear) or full 29in compatible
  • TranzX adjustable travel dropper
Technical Information
  • Fork
    Fox 36 Rhythm, 170mm Travel, 29", Grip Damper, 110x10 Kabolt, 44mm Offset
  • Frame
    Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
  • Front Suspension
    X-Fusion Vengence, 170mm Travel, 44mm Offset, 110x15mm Bolt-on Axle
  • Rear Suspension
    X-Fusion H3A Air, 205x65, 30xM8 Lower Hardware, Custom Tune
  • Rim
    New Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
  • Hub Rear
    Shimano HB-MT501B, 148x12mm, Centerlock, Micro Spline Freehub Body
  • Hub Front
    Shimano HF-MT500B, 110x15mm, Centerlock
  • Spokes
    14g Black Stainless Steel
  • Tires
    Front: Maxxis Assegai MAXX GRIP, 29x2.5" EXO+; Rear: Maxxis Minion DHR II, MAXXTERRA, 27.5x2.5" DoubleDown, Tubeless compatible
  • Derailleur Rear
    Shimano Deore, 12-Speed, SGS
  • Shift Lever
    Shimano Deore, 12-Speed, SL-6100-IR
  • Crankset
    Samox RAC61C, Forged Alloy, 32T, 55mm CL, 165mm
  • Bottom Bracket
    Samox BSA Threaded
  • Chain
    KMC X-12 Silver and Black
  • Cassette
    Shimano, Deore M6100 12-Speed, 10-51T
  • Brakes
    TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
  • Brake Levers
    TRP Slate EVO Hydraulic Lever, I-Spec EV Compatible
  • Handlebar
    Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
  • Stem
    Marin 3D Forged Alloy, 35mm
  • Grips
    Marin Grizzly Lock-On
  • Headset
    FSA Custom Headset, Adjustable HTA Design
  • Seatpost
    TranzX YS160QL Adjustable Travel Dropper Post, Size S=150mm, M=170mm, L-XL=200mm Travel, 34.9mm
  • Saddle
    Marin Speed Concept
  • Extras
    Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head
