The new Arcadex COMP runs Fulcrum Rapid Red wheels
The new Arcadex COMP runs Fulcrum Rapid Red wheels
Bianchi

Bianchi Arcadex Comp GRX 610 / 822 Gravel Bike Metallic Sand

£2,649.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.
Hassle free returns
Cancellation

We obviously want you to be 100% happy with your online purchase but if for some reason you are not then Highland Bikes offers a 28 day no quibble returns policy.

your order has not yet been dispatched then we should be able to cancel it immediately and process your refund. If however you order has been dispatched then you have 14 days from the day the goods were received to inform us of you intention to cancel. You then have a further 14 days to return the goods to Highland Bikes Ltd, Returns Dept, 29-31 Shore Street, Inverness,IV11NG. Returns received out with the 14 day period will not be accepted and will be shipped back to you at your cost.

If you are posting back your goods then you are required to complete a returns form. You will also need to contact us for a returns number. Any items sent back to us without the correct returns information will not be accepted.

Any items returned must be in unused condition in the original packaging. Any signs of over handling will result in a charge and/or reduction in the amount refunded. Damage to the original item packaging (not the shipping packaging) may result in your return being rejected and the item will be returned to you at your cost. If in doubt then please contact us before returning any items.

Refunds will be made within 14 days of receipt of the goods. Items must be returned at your own cost and we recommend that you use an insured service as the goods will remain yours until the item is refunded. We understand the return of larger items such as bicycles can be difficult to arrange so we can collect on your behalf. Prices for collection start at £50. Items that has been customised for you in any way are not subject to our normal returns policy and will be dealt with on an individual basis.

Bianchi Arcadex Comp GRX 610 / 822 Gravel Bike Metallic Sand

Season:2025

Brand:Bianchi

Code:YTB87IAZ

Start riding further

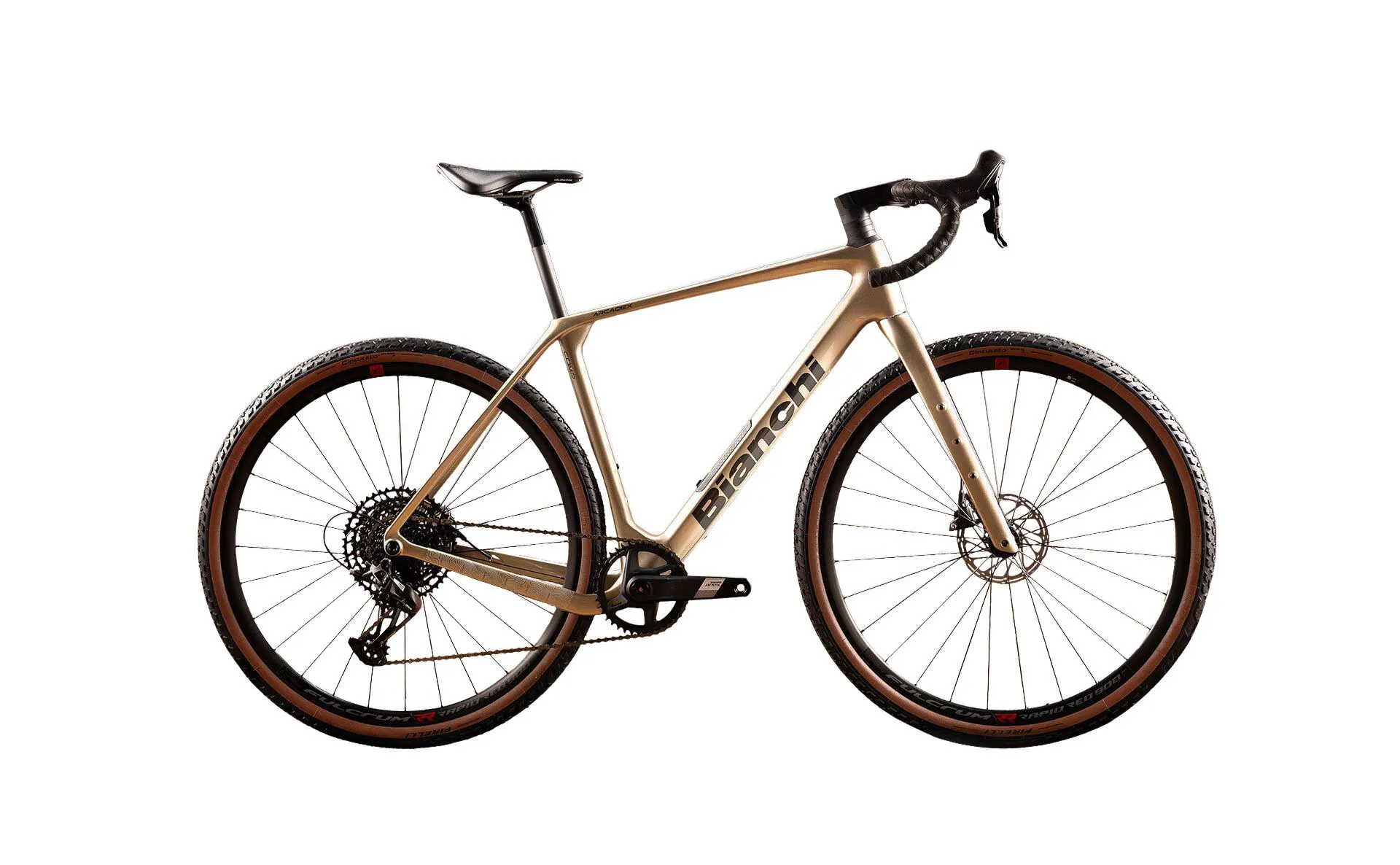

The new Arcadex COMP runs Fulcrum Rapid Red wheels, which will roll tough on challenging terrain and is offered with either Shimano GRX 610 or SRAM Apex mechanical groupsets. Our designers have created two colourways for the Comp: classic celeste and graphite, or metallic sand with graphite. Both are full glossy finishes.

Technical Information
  • Frame
    Arcadex Comp Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility: 38T-44T Minimun Chainline: 45.5 mm Tire Clearance: ETRTO 622-50mm SeatPost O.D: Ø27.2 mm Material: Epoxy - SM Carbon Fiber Composite
  • Fork
    Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8" Material: Epoxy - SM Carbon Fiber Composite
  • Headset
    Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal
  • Shifters
    Shimano GRX 610 ST/BL-RX610
  • Freewheel
    Shimano CS-M7100-12 speed, 11-51T Driver body Interface: MicroSpline
  • RearDerailleur
    Shimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51T
  • Crankset
    Shimano GRX 610 FC-RX610-1, 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)
  • BB
    Shimano SM-BB72-41B, press fit
  • Chain
    Shimano CN-M7100
  • Brakes
    Shimano Hydraulic Brake, BR-RX400
  • Wheels
    Fulcrum RapidRed 900 2-Way Fit Ready (for clincher and tubeless ready) Rim Diameter: 700C Material: Aluminum Alloy Rim Height: 24 mm Inner Wigth Channel: 22 mm
  • Tire
    Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall
  • Stem
    Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8" (28.6mm) HB interface Diameter: 1-1/4" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61)
  • Handlebar
    Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61)
  • TapeHandlebar
    Bianchi Hexagon tape 2.5mm thickness, Full black
  • Seatpost
    Velomann Carbon UDSeatPost O.D: Ø27.2 mmSeatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), LG(58) XL(61)
  • Saddle
    Velomann MITORA 149 H2 cover: soft touch, padding: foam, shell: nylon carbon rails: Steel lenght: 250mm width: 149mm
  • Rotor
    Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)

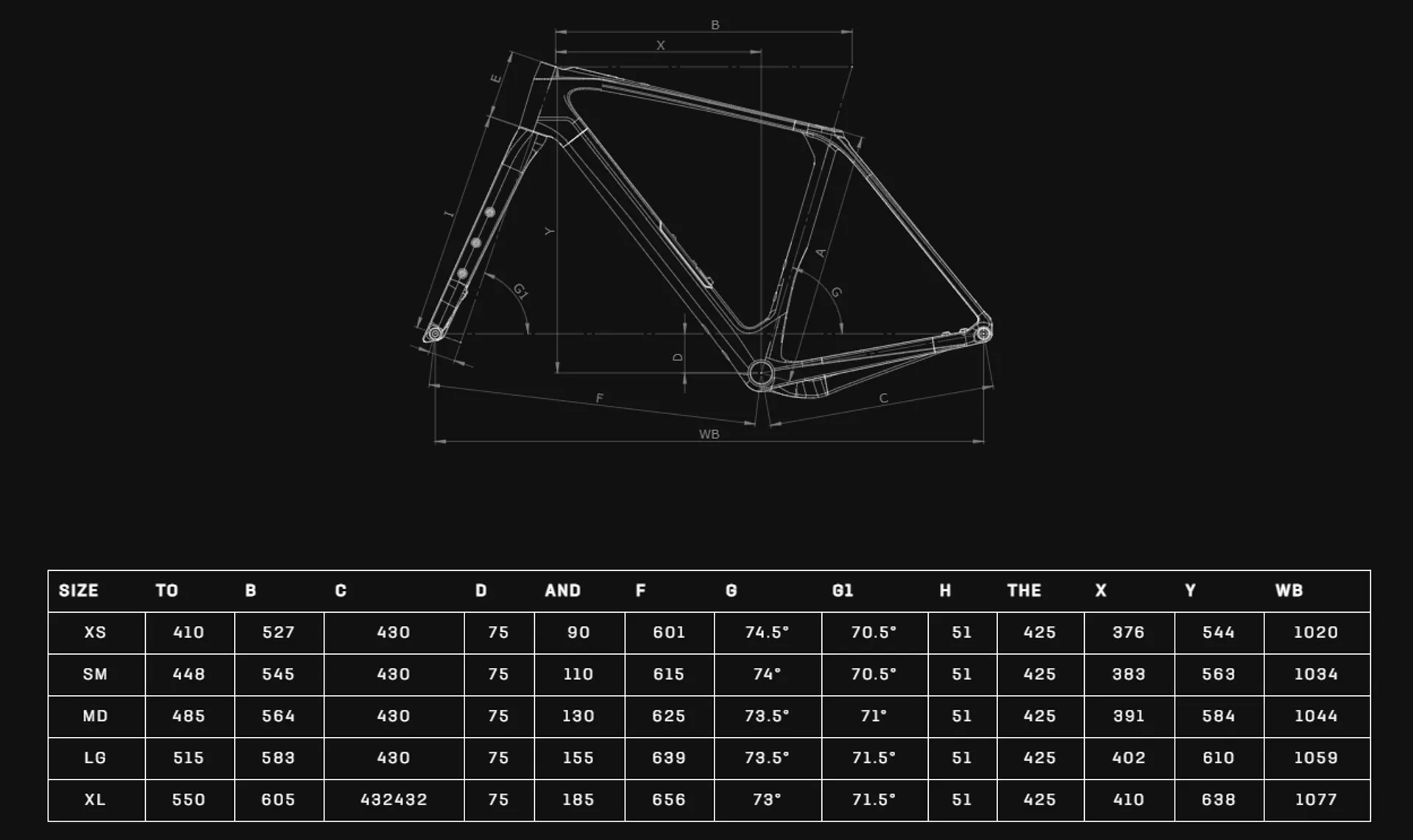

Sizing Information
